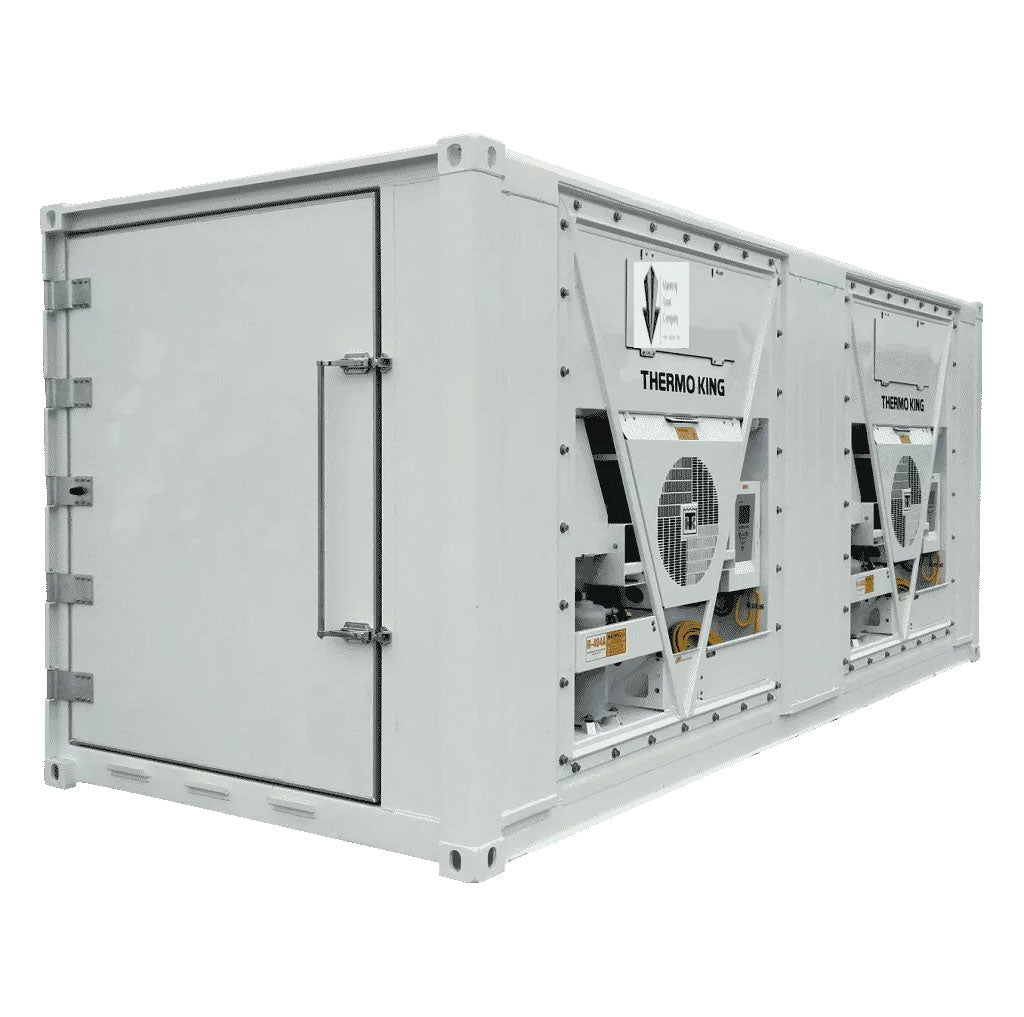

20FT Blast Freezer Container-40°F TO 70°F (460V/230V 3P)

Specifications

These 20ft blast freezers containers for sale have the following specifications;

Internal capacity
23.8m3 (841 Cu.ft)

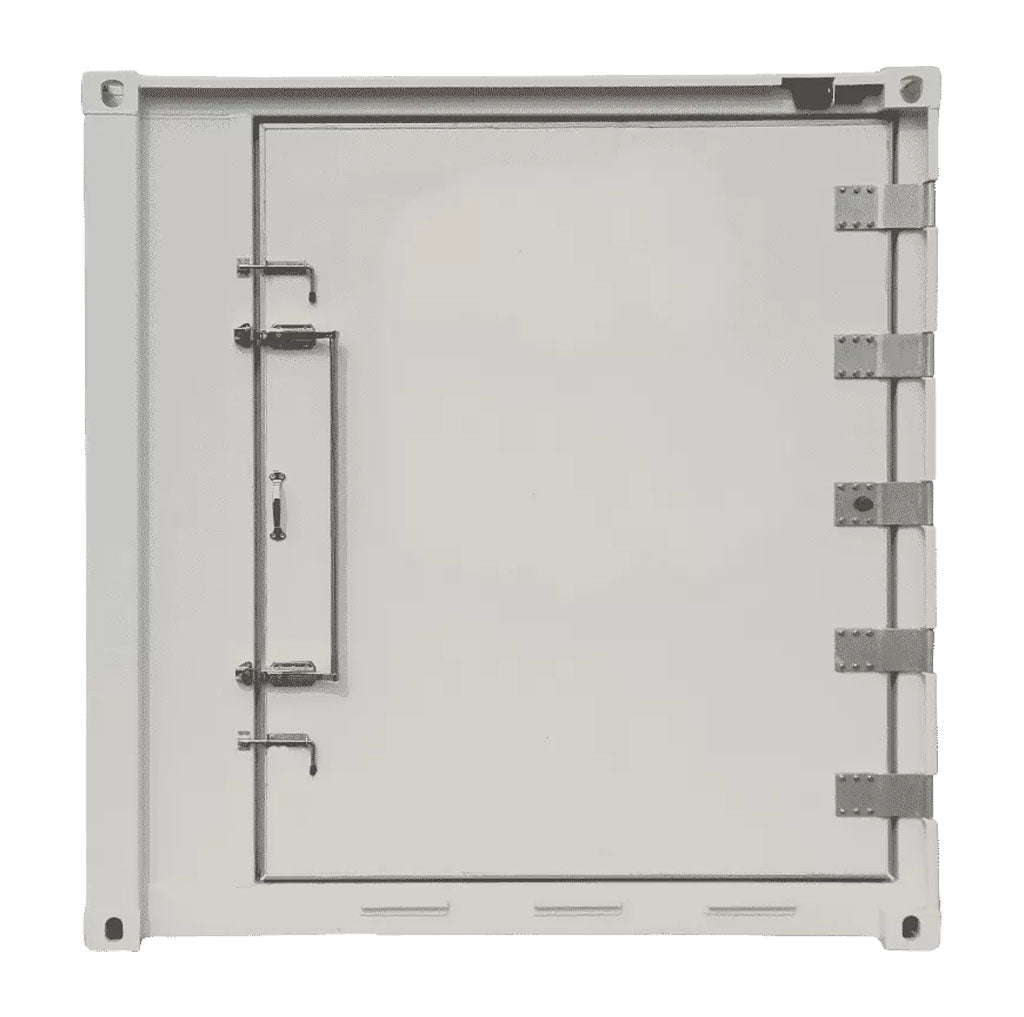

Door opening dimensions
Width 1,737 0/-5mm (5’-8 25/64” 0/-3/16”)
Height 2,232 0/-5mm (7’-3 7/8” 0/-3/16”)
Cargo access height 2,232 0/-5mm (7’-3 7/8” 0/-3/16”)

Ratings
Max. Gross Weight 24,000KG (52,910LB)
Tare Weight 2710KG (5980LB)
Tare Weight (incl. Unit 740 kg) 3450KG (7600LB)
Max. Payload 20550KG (45310LB)

Insulation
Item Thickness Density
Roof 90mm 40kg/cu.m
Side walls 65mm 45-50kg/cu.m
Door panels 81mm 45-50kg/cu.m
Floor 101/51mm 45-50kg/cu.m

Heat leakage value
Umax = 30 kcal/deg.c.hr. at the mean wall temperature 293K (20 °C)

Max. air leakage value
Qmax = 14 m3/hr. (incl. reefer unit max. 0.5m3/h) measured at 250+-10Pa.
